Fuji GFX cameras produce extremely high-quality images, but native lenses are very expensive, hence my need to look for alternative options. I recommend the website deltalenses.com, where you can find information on projection and enlarging lenses, which can be used with helicoid adapters.
In this article, we’ll discuss a 6×6 cm format Kodak Ektar 75mm F4.5 enlarging lens and a 35mm format Reflecta Agomar 90mm F2.4 slide projection lens. Both lenses cover the 44x33mm sensor of Fuji GFX cameras, are free of chromatic aberrations, geometric distortion, and remarkably sharp.
Kodak Ektar 75mm F4.5

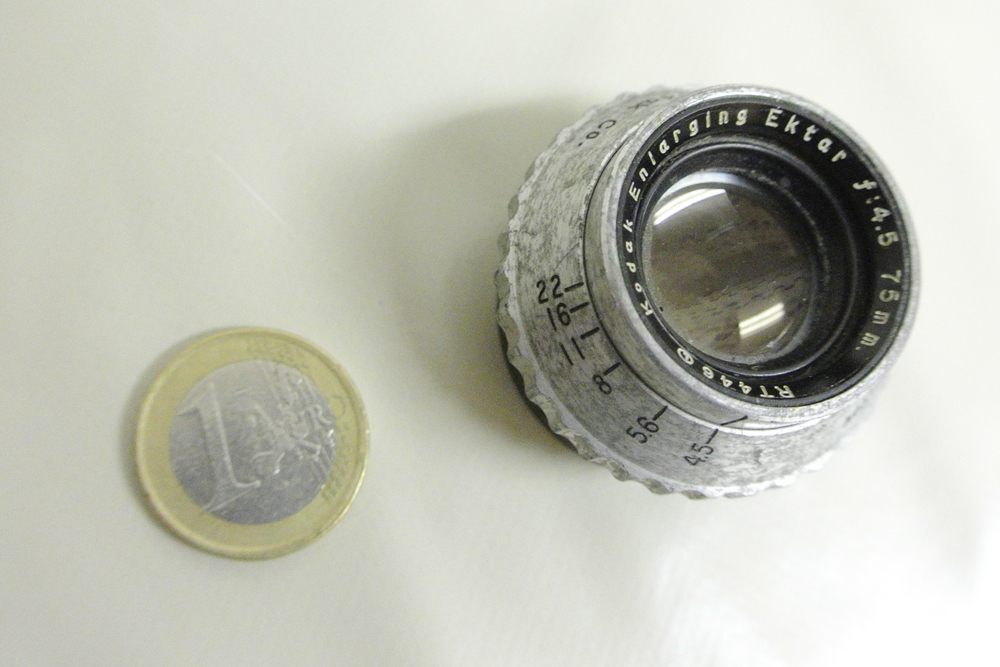

The Kodak Ektar 75mm F4.5 lens is made in the USA and should not be confused with the same lens made in the UK, which performs worse. It is a Heliar-type lens with a 5-element construction. It is very small; in the photo, it appears next to a one-euro coin.

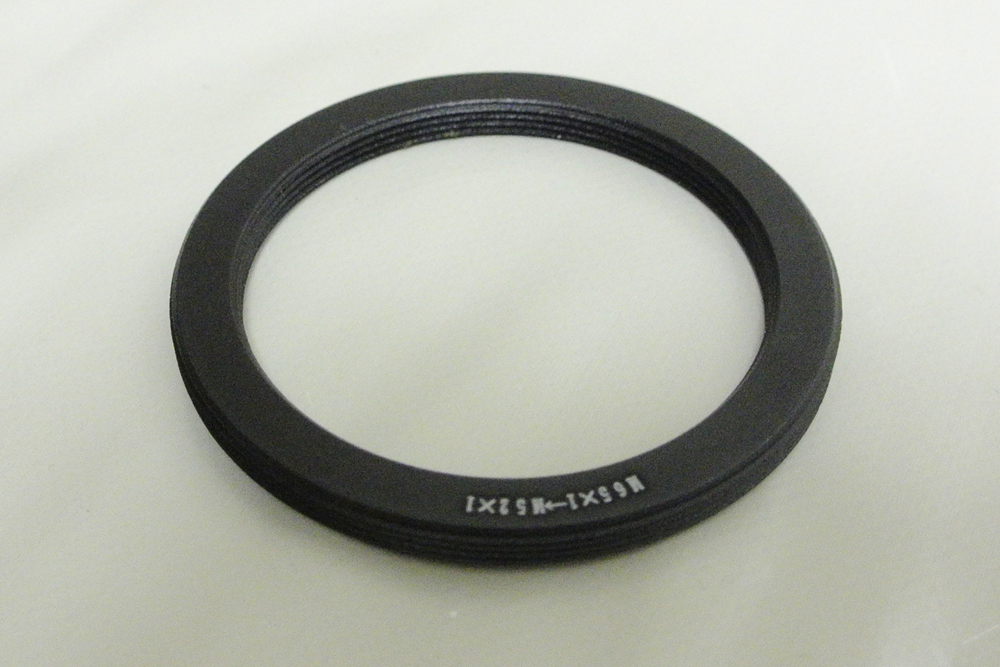

The mount is a 30mm threaded mount with a 0.5mm pitch. To fit the lens, you’ll need the following parts:
This is what the camera looks like with the lens attached.
The lens cost 87 euros on eBay and the adapters cost 66 euros on Aliexpress, for a total of 153 euros. Below are a couple of photos taken at F4.5 and their crops at 100%.
The Reflecta Agomar 90mm

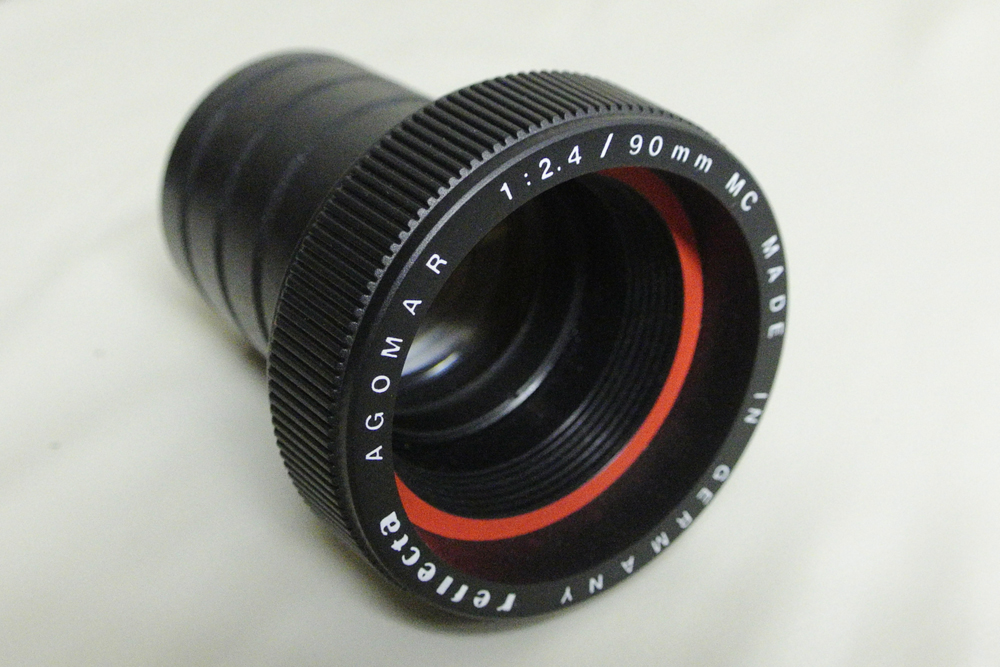

The Reflecta Agomar 90mm F2.4 lens is made in Germany and features a 4-element construction. It should not be confused with the other Agomar F2.8 lens, which only has 3 elements and performs worse.

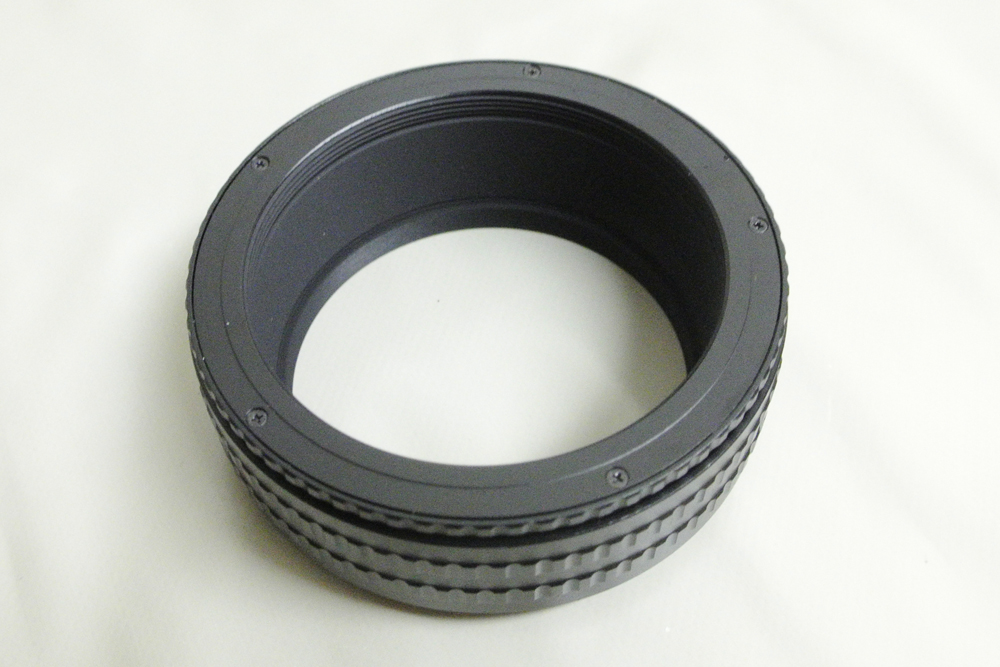

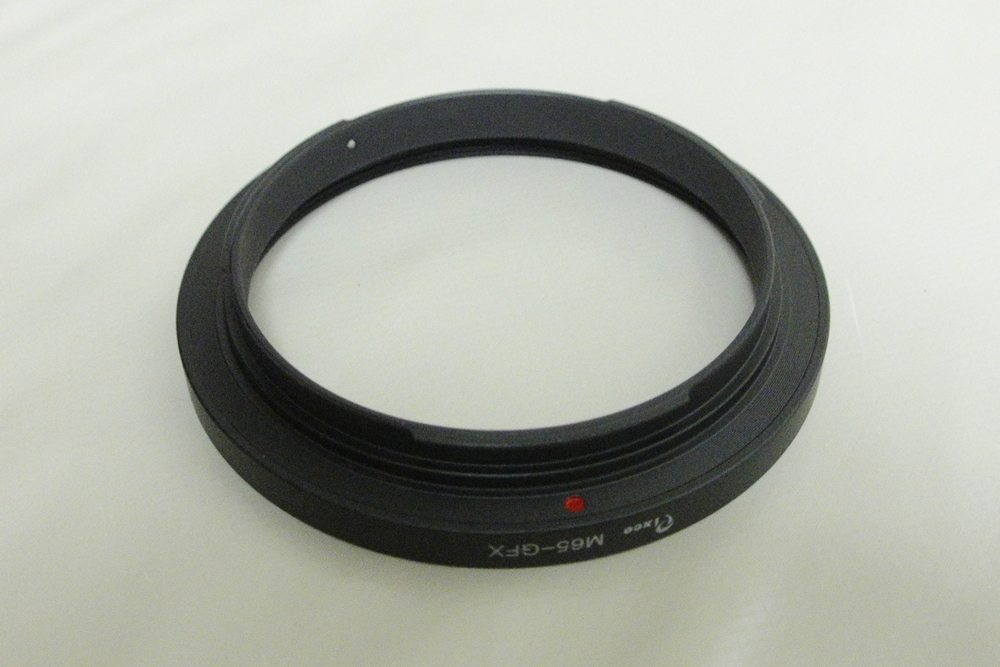

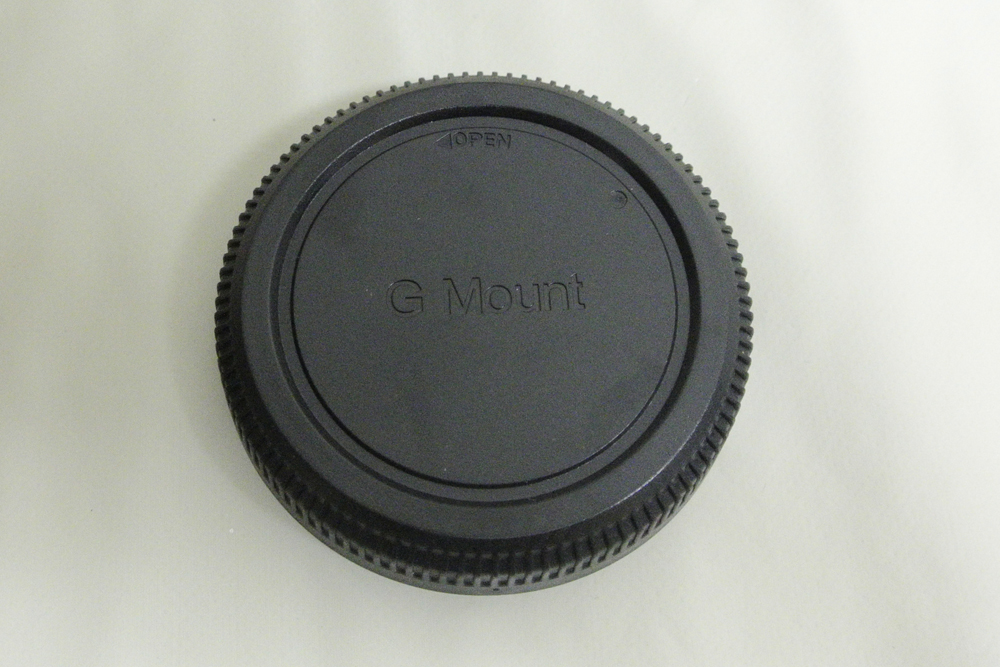

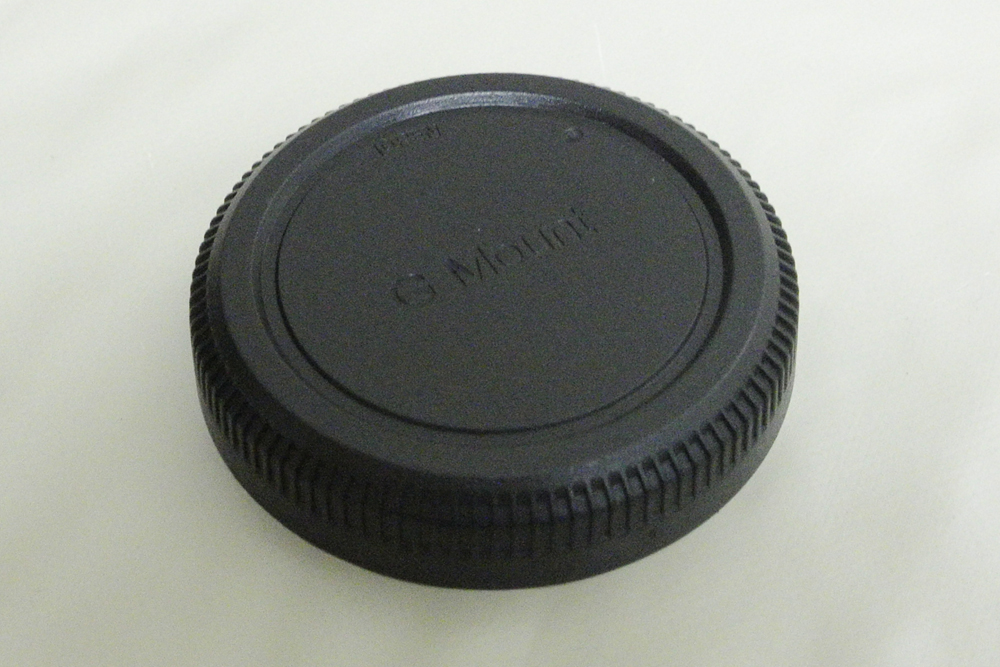

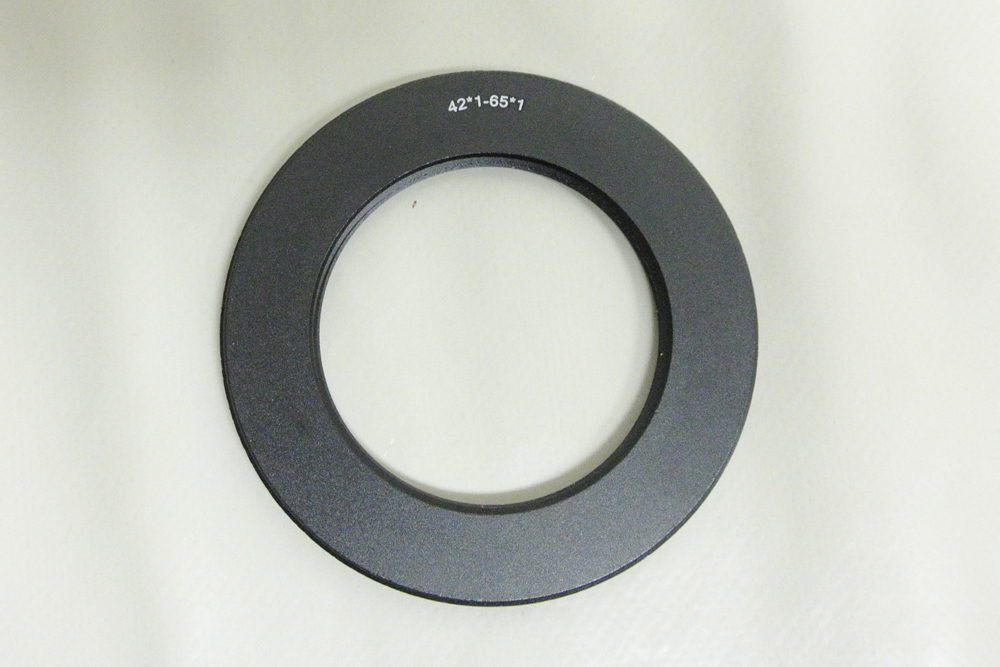

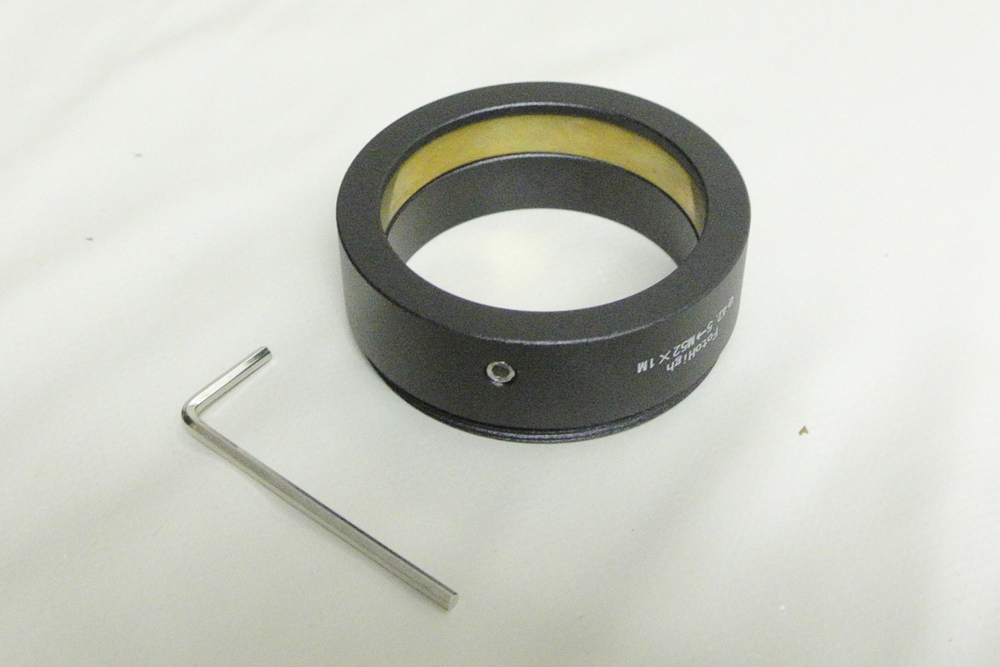

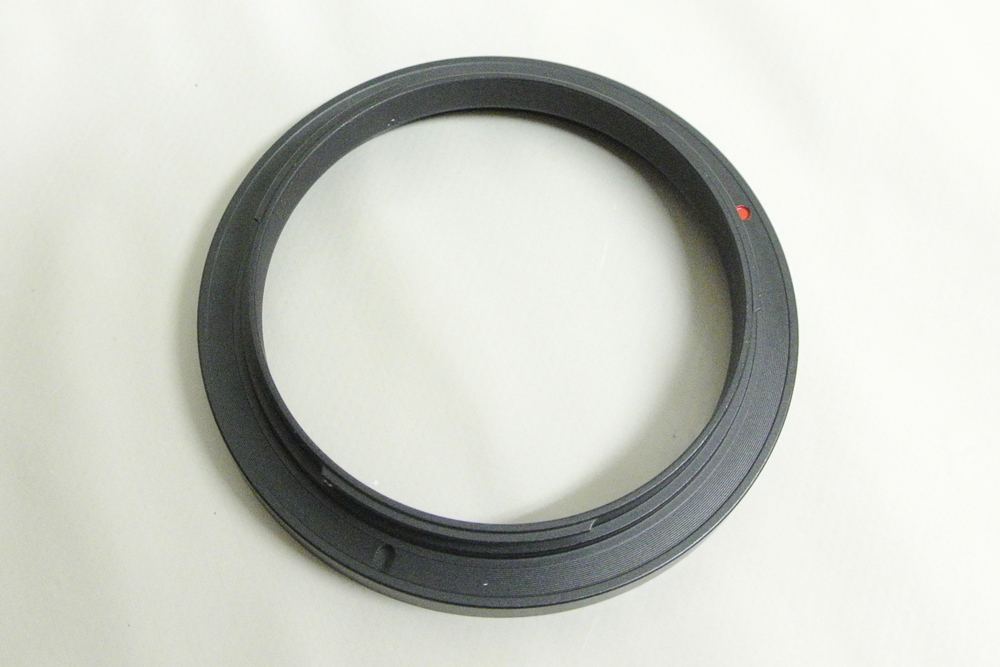

The lens diameter is 42.5mm and to adapt it we will need the following parts:

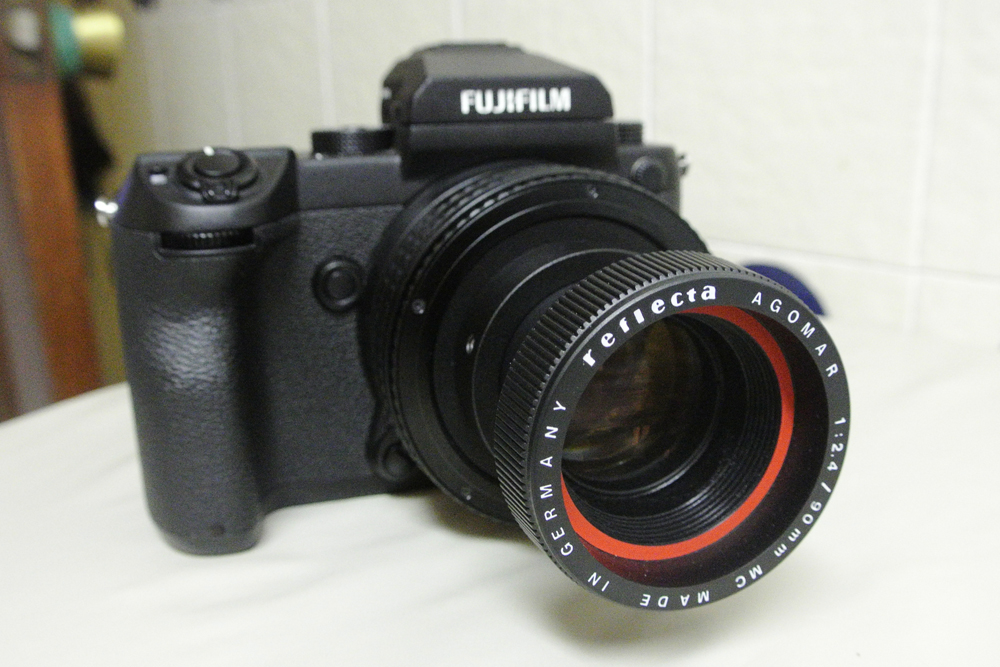

This is what the camera looks like with the lens attached.
The lens cost 50 euros on eBay and the adapters cost 80 euros on Aliexpress, for a total of 130 euros. Below are a couple of photos of my friend Alberto took at F2.4 and their crops at 100%.
I hope you enjoyed my article. You can see my photography work at danielmartinezbarber.wordpress.com
