The Leica 1.4x viewfinder magnifier – mini-review

Leica 1.4x viewfinder magnifier

I’m having all sorts of short-telephoto lens decision woes at the moment. I want to have a 90mm lens (or there about) within my selection of Leica mount lenses – primarily for use on my M9. The problem is, I increasingly find myself incapable of focusing properly, especially at wider apertures. I’ve recently found myself tempted into shooting autofocus cameras as an alternative, but find myself annoyed at the idea of having a whole other system just to solve a desire to once in a while take photos with a slightly longer lens.

The answer has for a long time seemed obvious. I need to try a good viewfinder magnifier. The problem is, I’ve tried a couple cheaper ones that I don’t seem to be able to get on with well enough to persist with. When temptation has piqued to try a good(/expensive) one in the past, this inability to use a cheaper one has put me off forking out the extra cash, especially of one of the Leica ones which are £200(!!). It would be mad to shell out that sort of cash only to find that like the others it’s fairly useless to me. What I needed was a mate/friendly 35mmc reader to loan me one… thanks Des! 😉

Fortunately, myself and Des have met; we’ve bought/sold/exchanged gear in the past so he knows he can trust me with his eye-wateringly expensive Leica 1.4x viewfinder magnifier. In some ways, I’d actually hoped the damned thing wouldn’t work for me. They are so bloody expensive to buy new, I could do without the temptation to buy one.

If you aren’t familiar with the Leica viewfinder magnifiers they are available in 1.4x and 1.25x and come in little leather pouches that are designed to attach to your camera strap. Inside the pouch contain the viewfinder magnifier and a little metal chain that attaches it to the strap lug on your camera. After all, you wouldn’t want to lose one of these things!

Niggles

When attached, the chain reminds me of one of those things some people use to hang their specs around their necks – you know when they put the glasses on, usually half way down their nose, and the chain/cord hangs down the side of their face…? Just me maybe…? Anyway, the chain on the Leica 1.4x viewfinder magnifier just sort of flaps around in a annoying flimsy looking way that only really gives a mild reassurance that you won’t lose the thing.

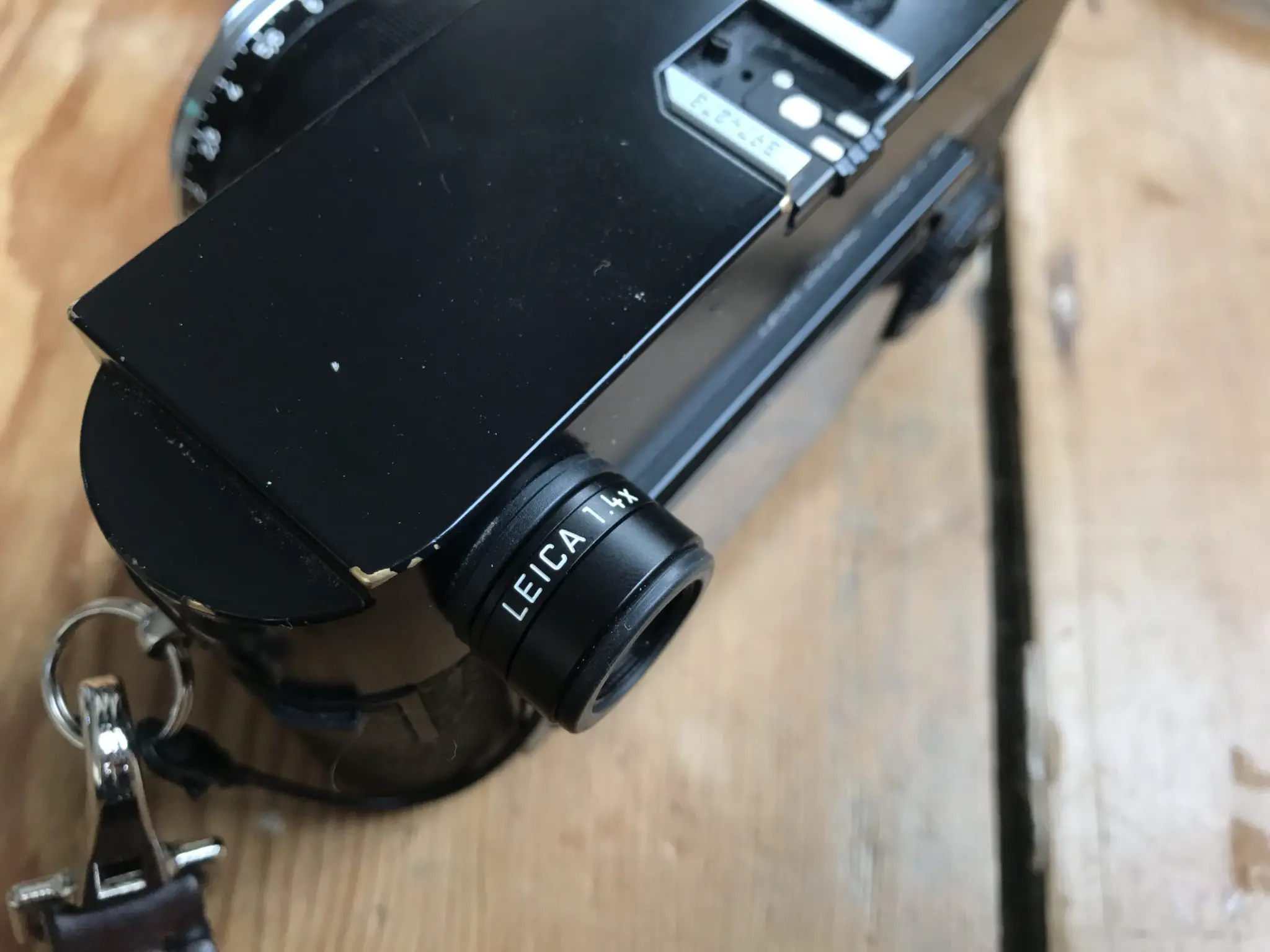

Attached to the camera the 1.4x is a fairly big chunk of a thing too! It pokes out of the back of the camera more than any other of these things that I’ve tried to date.

Quality

These gripes aside, when push comes to shove it’s hard to deny the quality. In terms of build, its top notch and optically, it’s nigh on perfect! It provides perfect clarity to the view, and doesn’t seem to darken in at all, with my only complaint being a subtle pincushioning, but even this is hardly noticeable.

It works!

Admittedly, it does take a small amount of getting used to. When I first used this one, I felt like I was losing a sense of the edge of the viewfinder. It’s also a little harder to easily see the shutter speed readout in the M9, but it’s far from impossible – you just have to look down into the finder.

Once you get used to, it just works. My hit rate with the 90mm at f/2.8 went from the odd shot here and there being in focus, to almost every shot every time.

The 1.4x I have here takes the M9s 0.68x viewfinder to around 0.95x. It takes the standard 0.72x finder to pretty much exactly 1x. In practice, this takes the 50mm frame lines quite close to the edge of the viewfinder, but they’re still very usable.

Without 1.4x – 50/75mm framelines

With 1.4x – 50/75mm framelines

The main advantage for me comes when shooting the 90mm. Not only in the rangefinder patch magnified and therefore so much more accurate, but with frame lines becoming quite a bit bigger too, I have found framing to be easier too!

So what about the cheap alternatives?

The main difference between this and the cheaper ones I’ve tried previously is primarily that this one doesn’t have diopter adjustment. This might sound like a negative, but in practice the lack of ability to change it means that it doesn’t get changed. On both the cheaper ones I have used, the diopter would get adjusted against my clothes between shots meaning I’d have to set it each time. Not only this, but both my cheaper ones seem to make the image darker, and somehow more hazy, even when the diopter is set right.

Final thoughts

As much as it pains me to say it, this Leica 1.4x viewfinder magnifier is bloody good! It does exactly what it’s supposed to, and does it without fuss. It’s a bit big, and the security chain – though probably more effective than I’m giving it credit for – just looks stupid.

£200! Wow! You’ll have to make your own mind up about that one. I’m going to get my arse on eBay and keep an eye out for a second hand one – unless anyone has any other recommendations?

Cheers for reading (and cheers for the loan Des!)

Hamish

Help keep this blog alive!

35mmc needs a little bit of support to help keep it going -If you enjoy reading the content here, please consider showing your support in one of the following ways:

Write for 35mmc: read more here, about how you can help build upon this ever growing resource
Subscribe/Follow: click here, to discover all the ways you can follow 35mmc
Cameraventures: follow this link to buy something off Cameraventures and 35mmc will get a little kickback
Ebay: follow this link to buy something off ebay and 35mmc will get a little kickback
Advertise: read more here, about advertising on 35mmc
Paypal Donate: Read more here, or just click the donate button below. Nothing helps more than donations! Every single pound helps!

Advertisement

You Might Also Like

8 Comments

  • Reply
    Des McSweeney
    April 2, 2017 at 12:35 pm

    I love my Summarit 90 2.4 (more than a previous non-asph 2.00 I once owned) but like you I was having a low hit rate on focussing it (even worse than my usual ropey average…) so I got the magnifier. It has been a revelation and I never use the one without the other. It wasn’t that price for sure, I paid around £100 on that well known auction site as I felt there would be no possible qual issues with a magnifier and there weren’t. I think they were about £150 new then so at £200 this is yet another Brexit mini disaster (ditto most hifi kit, happy to rant another time). As for the chain, I keep it in the little pouch rammed into the bottom of my left hand trouser pocket so I don’t accidentally pull it out of my right… as you just wouldn’t want to lose this little blighter at the current replacement price. Also it seems that to use in on an M10 you will need to spend a further £45 for an adapter (gouge). I am that Des and delighted I could help, as ever.

    • Reply
      Hamish Gill
      April 2, 2017 at 7:58 pm

      Thanks Des! You’re right about hifi… but yeah, for elsewhere 😉 £45!!
      I suppose you are going to want it back now…? 😉

  • Reply
    Ian Turnedge
    April 2, 2017 at 6:13 pm

    Have you considered using superglue to lock out the dioptre adjuster on a cheap magnifier?

    • Reply
      Hamish Gill
      April 2, 2017 at 7:59 pm

      I did blutak. It looked shit, but worked(ish). The quality still wasn’t good enough though

  • Reply
    Neil
    April 3, 2017 at 9:57 am

    I’m curious to know how easy it is to use a longer focal length lens on a rangefinder is. it seems to be pushing it somewhat to be shooting a 90mm lens wide open and expecting everything to be in focus, what is the rangefinder calibration is slightly off?

    • Reply
      Hamish Gill
      April 9, 2017 at 7:11 am

      With the mag it’s easy – without, not so much at all. I did think my 90mm was out of whack for a short while. I was definitely wrong

  • Reply
    Ian Turnedge
    April 4, 2017 at 7:52 pm

    Well, in that case… The only reasonable thing to do is order up another M9 and loctite the Leica magnifier onto it… in that way you get the quality, but you dont have to use the little leather handbag.

  • Reply
    Graham
    April 9, 2017 at 1:28 am

    BIG downside with these is that if you don’t pay attention, and you lift the camera to your eye in the usual fashion, you will inadvertently mash the thing into your eyeball. *Extremely* painful. Not so bad for those with eyeglasses.
