Fuji Klasse W – Comments on Exposure and Focusing

Klasse w ref data

I have posted my initial impressions of this camera here, this is a follow up to that.

One film in, and I would be lying if I didn’t slight have concerns. Not significant ones, and maybe more observations of limitations than concerns… but either way they are as follows.

The speed to focus is a little slow and there is some shutter lag. This isn’t something I wasn’t expecting, I’d read about it… But you kinda just expect people’s opinions (especially online) to be over exaggerated. They may have been a little, but it’s not as fast to photo as ideally I would like.

That said, I suppose the reality is that when evaluating a camera the intended use of the camera should be taken into account. I do want to be able to take photos of my daughter with it and she is pretty fast moving, but thats not really what I bought it for.

Connie on fort royal hill
This picture demonstrates the lag, she was sat down when I pressed the button to shoot, in the time it took to focus and fire she put her hand on the step and started standing up.

This camera was purchased to be my carry everywhere camera, the sort of camera I take when I go for a walk with the dogs, to town with the kid and missis etc. But also when I am out and about, intend to take some photos but can’t be bothered with carrying anything bigger… and that is most of the times I go out with intent these days. The best idea I can give of the sort of photography I enjoy as a hobby is from a recent trip to London (shots taken with the GR1)… That’s the sort of photography I wanted this camera for!

For the sort of photography the autofocus is more than fine. In fact in most of those shooting circumstances, at very least the outdoor ones manual focus would have been a perfectly valid option. I’ve not fully explored the manual focus on the fuji, but it does seem it would speed up the shooting time significantly if I did feel I was missing those decisive moments.

One of the custom features (C4) on fuji is the ability to set the camera to move the lens to the obtained point of focus before or after full press of the button. The first film I ran through it was set to before, this second film, after. I’m not convinced yet that either proves an advantage in terms of speed, but the camera does make some noise when moving the lens so it is perhaps sensible to limit this to a one off action should you be in a quieter environment.

This is of course a very easy to identify limitation of the camera that became apparent to me as soon as I started using it. A slightly more difficult to grasp limitation is one I touched on in my initial impressions. It’s the cameras choice of shutter speed when on program (‘P’)… at least that’s the start of it…

I mentioned that the camera prefers shooting at larger apertures. I worked out that the camera would only choose to open the aperture fully once there was a necessity to choose a shutter speed as slow as 1/4 sec. I have since found an English manual and discovered a page relating to this.
It appears it is happy to use f2.8 below 6.5ev. Take a look at this page and you can see the other thresholds.

Klasse w ref data

Fine, as I said, this can be overcome by using the camera on aperture priority. The problem is, these thresholds change depending on the ISO of the film (or at least the ISO the camera is set to) … This threshold only relates to 100iso.

Additionally to this, what I didn’t realise is that 1.5ev less than this threshold and there is a limit on the cameras ability to select an appropriate shutter speed. This limit is indicated by a rapidly flashing shutter speed reading inside the viewfinder. So, shooting at 100iso if the light is low enough to warrant a shutter speed of 1/2sec or slower, it can only choose 1/2sec. If a 1 second exposure is required, it can’t do it, it just rapidly flashes 1/2sec at you and if you do press the button it fires at 1/2sec. This is of course fairly far outside of normal shooting conditions… So is it why worth mentioning? Well, change the ISO setting and these lower thresholds of course change relatively.

With the change of sensitivity of film the camera is effectively only more sensitive to the light, it’s ability to focus in the lower light doesn’t improve! So, with a setting of 200iso the limit of the ability of the cameras meter comes into play at 1/4sec, still not likely to be an issue. But stop by stop this limitation starts effecting real life shooting. The following shows the the slowest shutter speed available at given iso settings.
400iso, 1/8th sec
800iso, 1/15th sec
1600iso, 1/30th sec
3200iso, 1/60th sec

So what is this limit? What causes it? As I mentioned before, at 6.5ev (100iso) the camera will choose an aperture of f2.8, and at 1.5ev less the camera hits this limit. You can see it on the graph, it ends at 4ev.
The graph ends a 4ev because that is the lowest light level at which the camera can read the light and if you have a look at this page of the manual, it is there in black and white.

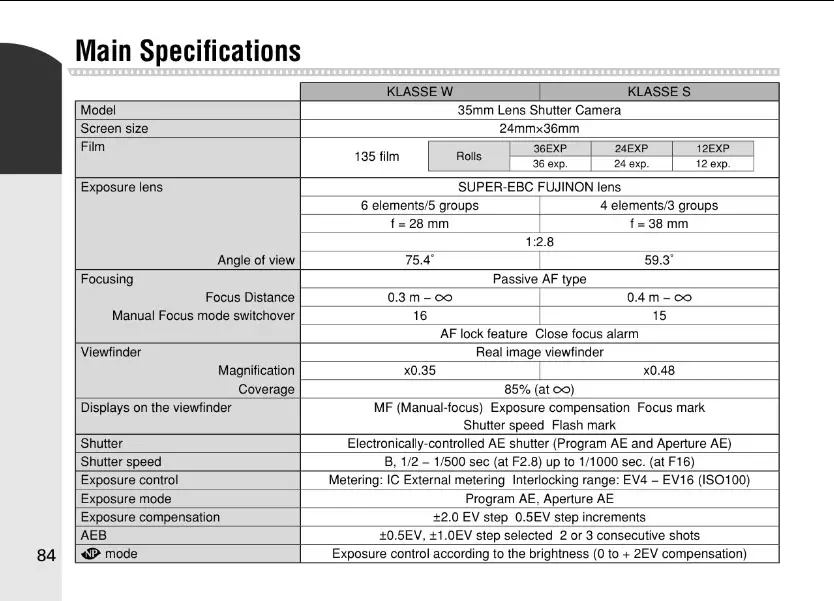

Klass w specs
“Exposure control Metering: IC External Metering Interlocking Range: EV4 – EV16 (ISO100)”

So why have I gone to such pains to explain all of this? Well, I had read that the meter had a range of 4ev – 16ev but didn’t realise how this translated into real life. I have also read forums where this is mentioned, but no answer was given. So I thought I would explain it. It has also taken me starting to write this article, getting a bit confused as to why this limit was coming into play, worrying the camera was broken and then finding the English manual to work it out for my self. By writing this hopefully I can save that from happening to someone else?

So what does this mean in real life, well, I’m not sure it means a great deal really. If I ever shoot in light as low as 4ev (100iso) then I’m probably either taking photos with a tripod, am geared up with a faster lens and/or have high speed film in the camera. If the later is the case I’m probably taking photos of people and probably don’t want to shoot lower than 1/60th anyway. The issue is of course, the camera can’t tell me how much slower than 1/60th it might want to shoot at should it be required… This is a distinct limitation for me!

Just a couple of other small observations.
Going back to the subject of the point at which the camera selects apertures. Once the film speed is above 400iso, the camera just refuses to use f2.8 when set to program. Of course the manual selection of aperture still remains. I just felt this limit was worth pointing out.

Also, in an absolute emergency, when that shutter speed is rapidly blinking at you the exposure compensation dial still works. Because of this, you could effectively manually select a slower shutter speed if required. I suppose you would have to be in a pretty desperate situation to want to do that though.

So, two limitations discovered, or at least understood to a greater degree. Focus can be a little slow, and this camera isn’t really geared up for particularly low light shooting. It’s not useless in, just not ideal for it … But then with a f2.8 maximum aperture lens, it was never going to be.

I hope my ramblings here make some sense, one of the attractions to compact cameras for me is the limitations they impose, I just find it useful to be fully aware of these limitations rather than get caught out.

As I said at the begining of this post, my initial impressions of the camera can be read here.


Since writing this I have published my final thoughts on the Klasse W here.


Show your support for 35mmc

If you found this post interesting or useful, or if it helped you make up your mind about buying one of these cameras, then why not

By clicking that link, as long as you buy, bid on or win an auction within 24hrs – at no extra cost to you – I will receive a little kick back from ebay to help keep 35mmc up and running.

Additionally, if you would like to contribute a post of your own to 35mmc, click here!

Thanks,

Hamish

Do you enjoy reading 35mmc?

For as little as $1 a month, you can help support the upkeep of this website. The more people chuck me a small amount of cash each month, the more time I can spend building and improving upon it - simple as that!
Or, for $2 a month you can get access to my behind the scenes micro-blog over on Patreon!

Either way, want to help out, become a patron of 35mmc here:

Become a Patron!

Alternatively, if you just enjoyed this post, or like the odd post here and there, please feel free to chuck a few pennies in the tip jar via Ko fi here:


Write for 35mmc: read more here, about how you can help build upon this ever growing resource
Subscribe/Follow: click here, to discover all the ways you can follow 35mmc

Advertisement

You Might Also Like

11 Comments

  • Reply
    Anyone using a Fuji Klasse?
    July 6, 2013 at 10:19 pm

    […] talks about it on his blog: Fuji Klasse W – Comments on Exposure and Focusing K1000…X-E1 18-55…X-S1…XF1 Canon T90…Zeiss Ikon Nettar 515/16 Olympus Trip 35…Mamiya […]

  • Avatar
    Reply
    Sorin Lazarescu
    August 18, 2015 at 7:13 am

    Thanks very much for sharing your thoughts. Also, a very comprehensive and really useful presentation (I also read your final thoughts about this camera); there is a question though, to which I still could not find the right answer, and, perhaps, you would be kind enough to help: which is actually the metering system of Fujifilm Klasse W? Is it spot, or center weighted, or some form of evaluative? I would very much appreciate your help.

    • Avatar
      Reply
      Hamish Gill
      August 18, 2015 at 7:18 am

      There’s a question… I’ve since sold the camera, so I can’t check.
      The meter is external though, so I would suggest centre weighted would be the most likely.

    • Avatar
      Reply
      Hamish Gill
      August 18, 2015 at 7:20 am

      … Sorry I can’t be more help. I constantly find myself wishing I knew what I know now about cameras when I’d reviewed some of them before. But of course, without reviewing them all, I wouldn’t have learnt what I know now…
      Thanks for the positive feedback though 🙂

      • Avatar
        Reply
        Sorin Lazarescu
        August 18, 2015 at 7:31 am

        You are very kind, to have answered so very promptly, although your assumption that it might be a center weighted meter left me with a somewhat bitter regret, as I have just purchased the Klasse W (I could simply not resist the price and its mint condition) and only thereafter, i.e. after reading various blogs, found that Ricoh GR and Minolta TC-1 could be better in that respect. Who knows, I might be able sometime to get one of these two…Anyway, thanks very much for your help.

        • Avatar
          Reply
          Hamish Gill
          August 18, 2015 at 7:34 am

          Have you read my TC-1 and GR1 posts too … I must admit, despite my conclusion at the end of the GR1v post, I wouldn’t buy one now. They are too fragile and are failing fast. The TC-1 is my first choice for 28mm lensed compacts… But even it is not perfect – it’s a little noisy

          • Avatar
            Sorin Lazarescu
            August 18, 2015 at 7:49 am

            Of course I have read your both posts, as I always do, with great pleasure; I have only recently found your posts and I was really impressed, as they are very savvy and so very candid/sincere. Of course none of these three point and shoot cameras is perfect (if I could have all these three models in one…..). They do help us improve our photography skills though, when we depart, even for a while, from the today’s modern digital SRL…not speaking of the great joy they somehow manage to give us. Once again, thanks for trying so nicely to alleviate my concerns. It remains to be seen what my impressions of the Klasse W will be after using the first rolls (I will pick up the camera from customs sometime today). Kind regards.

          • Avatar
            Hamish Gill
            August 18, 2015 at 8:04 am

            I shall be interested to hear how you get on with it Sorin!

          • Avatar
            Hamish Gill
            August 18, 2015 at 8:04 am

            And once again, thanks for the positive feedback 🙂

  • Avatar
    Reply
    Alan
    March 27, 2018 at 6:37 am

    Hi Hamish,

    Great article. I’ve read all 3 regarding the Klasse S. Looking forward to purchase it and was browsing for anything I could read on the Klasse S.

    Was just wondering during your time with the camera, was the shutter lag still as pronounce if you had the flash turned on during low light conditions, say in a pub?

    Appreciate your effort on your blog, definitely helpful.

    • Avatar
      Reply
      Hamish Gill
      April 2, 2018 at 10:20 am

      Hi Alan,

      I can’t remember to be honest, but I never experienced taking photos with it that didn’t feel laggy
